Semi Fowler Hospital Bed | Satva Bed

Engineered for international hospital ward care, general patient recovery, and long-term clinical reliability with zero compromise on ergonomic safety.

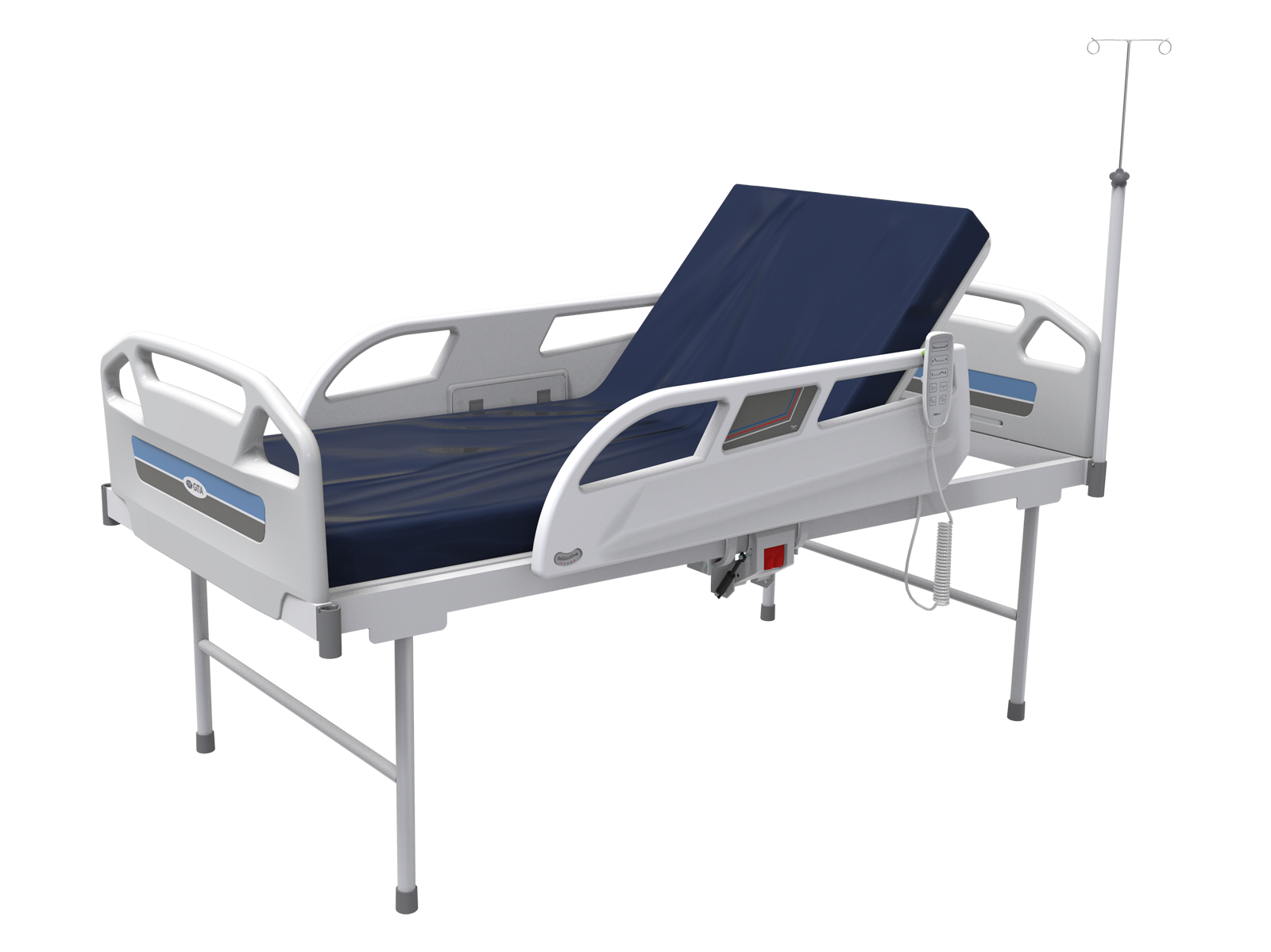

Satva Semi Fowler Hospital Bed — Ward Care Bed by Gita Mediquip
General Ward Care Engineering

Satva Series — Heavy-Duty Semi Fowler Bed

The Satva Semi Fowler Hospital Bed represents pure functional excellence inspired by clinical precision. Specially designed for high-occupancy hospital wards, semi-special rooms, and patient recovery units, this single-function bed focuses on delivering effortless backrest adjustment while maintaining maximum structural stability.

Built from high-grade Cold-Rolled Close-Annealed (CRCA) steel and finished with anti-microbial epoxy powder coating, the Satva bed enhances patient comfort during respiratory, cardiac, and post-operative care while drastically minimizing hospital maintenance overheads.

Contact Us
Clinical Capabilities

Designed for Patient Safety & Caregiver Efficiency

Engineered to meet international hospital accreditation requirements including NABH, CE, and ISO guidelines.

Precise Backrest Adjustment

Smooth 0° to 70° elevation operated either by a heavy-duty crank handle with smooth nylon folding mechanism or electric actuator system.

CRCA Steel Frame

Industrial-grade steel framing treated with multi-stage chemical pre-treatment and electrostatic epoxy powder coating for corrosion resistance.

Infection Control Ready

Removable polymer-molded head/footboards and seamlessly finished surfaces enable thorough hospital-grade decontamination.

Technical Data & Variants

Satva Series Model Comparison & Specifications

Select the ideal configuration tailored to your medical facility's budget and clinical requirements.

Model Variant Operation Type Side Rails Configuration Head & Foot Panels
SATVA-1MZSR01 Motorized (Remote Controlled) BRSR01 Collapsible Safety Side Rails (Set of 2) Removable Polymer Molded Panels
SATVA-1ZSR01 Manual (Screw Mechanism with Folding Handle) BRSR01 Collapsible Safety Side Rails (Set of 2) Removable Polymer Molded Panels
SATVA-1Z Manual (Screw Mechanism with Folding Handle) Optional Side Rails Removable Polymer Molded Panels
SATVA-X Manual (Screw Mechanism) Standard Configuration Fixed Powder Coated Frame Panels

Standard Technical Parameters

Overall Exterior Dimensions Approx. 2050 mm L x 1025 mm W x 610 mm H
Mattress Platform Dimension Approx. 1890 mm L x 820 mm W
Backrest Articulation Range 0° to 70° Continuous Elevation
Safe Working Load Capacity 120 kg (264 lbs) Static & Dynamic Load Verified
Standard Accessories Provision 4-Location Telescopic IV Rod Sockets, Chart Holder, Sanitizer & Urine Bag Hooks
International Supply & B2B Procurement

Equipping Hospitals Worldwide with Certified Quality

Gita Mediquip Pvt. Ltd. has over 35 years of manufacturing excellence in supplying high-grade medical furniture across 20+ countries. We assist healthcare administrators, government health departments, and turn-key hospital project contractors with direct factory export pricing, containerized packaging, and complete compliance documentation.

Contact Us
Buyer FAQ

Frequently Asked Questions

The Satva bed combines heavy-duty CRCA steel construction, smooth backrest articulation (0-70°), and easy-to-clean polymer panels. It offers the exact functional requirements needed for patient recovery while maintaining low long-term maintenance costs.
Yes. We regularly manufacture and ship containerized orders for healthcare setups ranging from 50 to 1,000+ beds. We provide custom branding, phased shipping schedules, and full export compliance assistance.
Gita Mediquip operates under ISO 13485 (Medical Device Management), ISO 9001, ISO 14001, ISO 45001, and holds CE product compliance for European and global healthcare markets.
