IEC 60601-2-52 & CE Certified

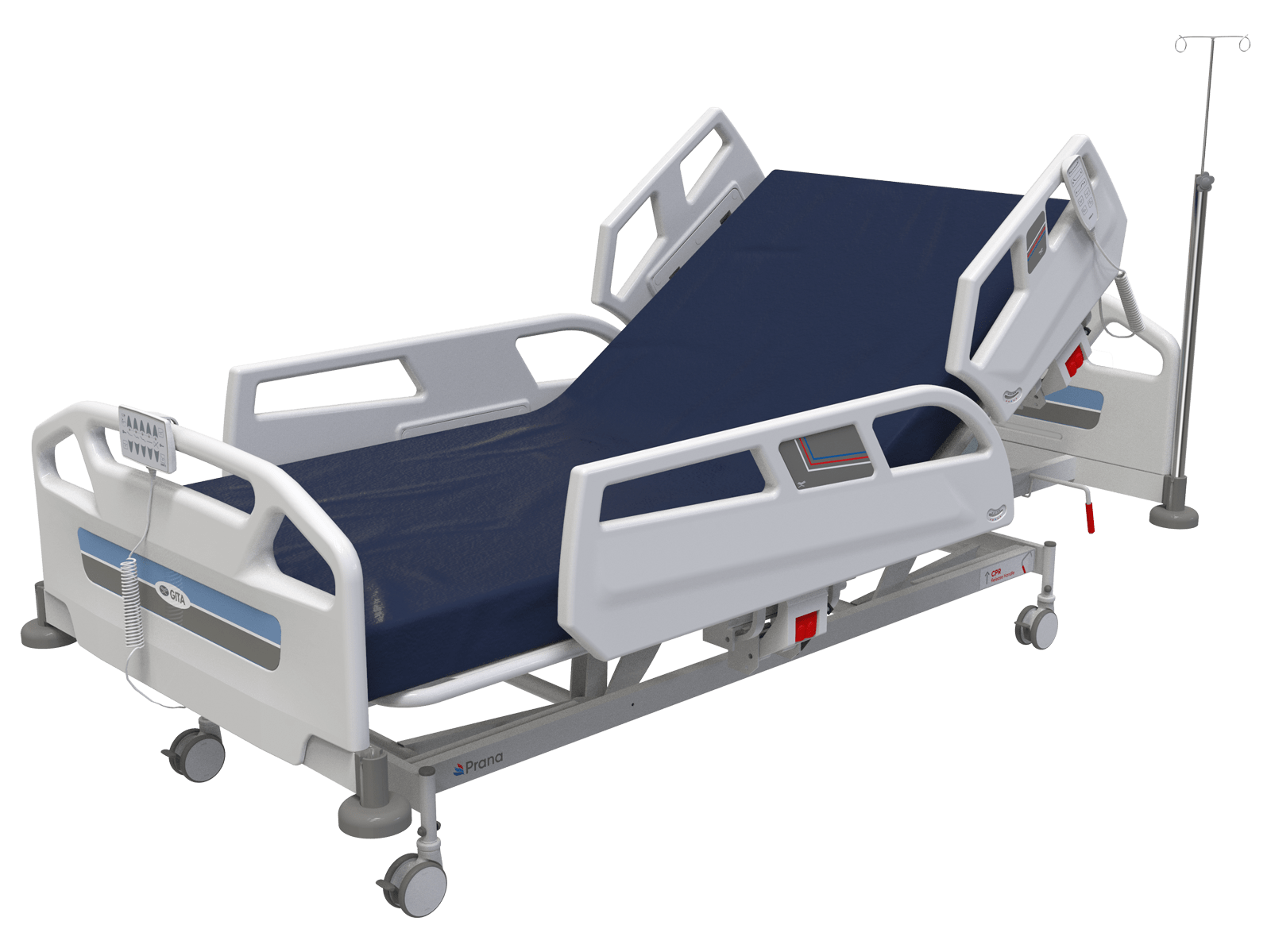

Electric ICU Bed with ABS Rails — Prana Series

Home / Hospital Beds / Prana Electric ICU Bed

Electric ICU Bed with ABS Rails — Precision Critical Care Engineering

The Prana Electric ICU Bed is engineered by Gita Mediquip to set new benchmarks in intensive care therapy, clinical safety, and caregiver ergonomic efficiency. Designed specifically for high-acuity hospital wards and ICUs, this motorized bed delivers seamless electrical positioning, robust patient protection, and infection-resistant construction.

Built for Global Hospital Standards

Manufactured in an ISO 13485 & ISO 9001 certified facility in India, Prana complies with global medical device standards, including IEC 60601-2-52 electrical safety requirements for critical care nursing beds.

Featuring four fold-down polymer molded ABS side rails, dual emergency CPR controls, motorized Trendelenburg/Reverse Trendelenburg adjustments, and an ultra-low minimum height of 340mm, the Prana series maximizes both patient comfort and recovery outcomes.

Advanced Clinical & Ergonomic Features

Designed to provide early patient mobility, fall prevention, and intuitive control for intensive care medical staff.

One-Touch Cardiac Chair Position

Effortlessly transforms the patient bed into a chair posture with a single button push. Facilitates early mobility exercises, enhances cardiac output, and supports comfortable patient dining during rehabilitation.

340mm Ultra-Low Height Safety

Attains an industry-leading lowest height of 340mm to drastically reduce patient fall injuries. Ensures safe bedside egress for recovering patients and eases caregiver transfer protocols.

Tuckaway ABS Side Safety Rails

Set of 4 polymer molded ABS side rails with built-in damping mechanisms. Features anti-entrapment design in compliance with EN-60601 clinical safety recommendations.

30-Degree Backrest Pause Function

Automatically pauses at the 30° backrest position for 2 seconds to assist nursing staff in identifying the crucial cardiovascular angle recommended for ventilator care.

Dual CPR Emergency Release

Equipped with instant manual emergency release handles on both sides, enabling immediate horizontal positioning of the backrest during acute cardiac events.

Auto-Regression Backrest (75mm)

The backrest shifts backwards by 75mm during elevation, significantly reducing sacral pressure, skin shear forces, and abdominal compression for optimal patient comfort.

See Prana Electric ICU Bed in Action

Watch our comprehensive demonstration highlighting motorized maneuvers, safety rail operation, and low-height accessibility.

Prana-ST Electric ICU Bed Technical Parameters

Precision dimensions and electrical protection standards for international hospital procurement teams.

Specification Parameter Prana-ST Model Details
Overall External Dimensions 2150mm Length x 1050mm Width x (340mm - 720mm) Height
Mattress Platform Dimensions 1965mm Length x 860mm Width
Backrest Angle Adjustment 0° to 70° (with auto-pause at 30°)
Kneerest Angle Adjustment 0° to 35°
Trendelenburg / Reverse Trendelenburg ± 12° Motorized Tilt Angle
Height Adjustment Range 340mm (Lowest) to 750mm (Highest Examination Height)
Safe Working Load (SWL) 250 KG (550 lbs) High Load Capacity
Liquid Ingress Protection Rating IP67 Waterproof Electrical Actuator System
Caster System 125mm Diameter Twin Wheel Castors with Diagonal Central Braking
Structure & Coating CRCA Steel Frame with Anti-Bacterial Epoxy Powder Coating

Compatible ICU Mattresses & Accessories

Customize your critical care unit setup with specialized medical accessories designed for hygiene and clinical utility.

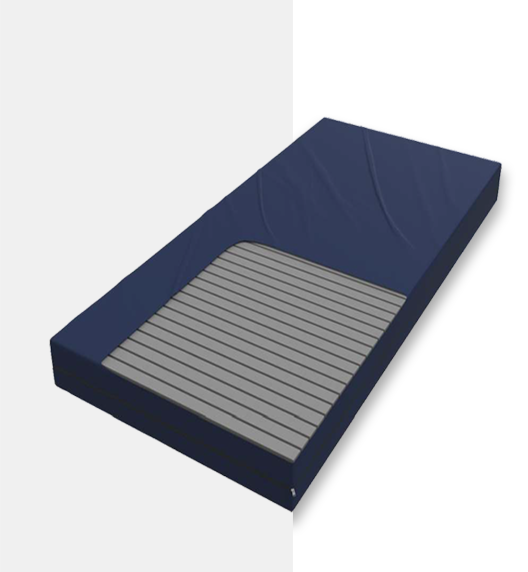

ME-003 Ultra Premium Super Soft 135MM ICU Mattress

ME-003 Ultra Premium 135mm ICU Mattress

ME-002 High Density 100MM Medical Mattress

ME-002 100mm 40-Density Mattress

Nurse ACP Control Panel

ACP Nurse Control Panel

ABS Removable X-Ray Permeable Bed Board

X-Ray Permeable ABS Bed Board

Frequently Asked Questions — International Orders

What international safety certifications accompany the Prana ICU Bed?

Each Prana Electric ICU Bed is manufactured under ISO 13485 medical device quality management and carries CE compliance along with IEC 60601-2-52 electrical safety certification, making it suitable for import in Europe, Asia, Africa, and the Middle East.

Does Gita Mediquip offer OEM / ODM customization for hospital projects?

Yes. As an established direct manufacturer, we provide OEM customization including customized color panels, brand labeling, custom dimensions, voltage configuration (110V/220V), and specialized accessory pairings for container-load hospital projects.

What is the lead time and export packaging standard for ocean freight?

Standard bulk orders are dispatched within 2 to 4 weeks. Products are packaged using heavy-duty seaworthy corrugated cartons and wooden crate packaging with moisture protection to ensure pristine arrival at overseas destination ports.

Connect with Our Export Sales Specialists

Need technical datasheets, CE declarations of conformity, or wholesale FOB/CIF pricing for hospital tenders? Contact our international supply team today.

Contact Us
